36KV(42KV)Indoor Termination Kit
NEEL Heat Shrink Joint has an extended shelf life when stored in a controlled environment with a temperature range of -10°C to 40°C and relative humidity not exceeding 75%.
36KV(42KV)Indoor Termination Kit Gallery
36KVIndoor termination kit

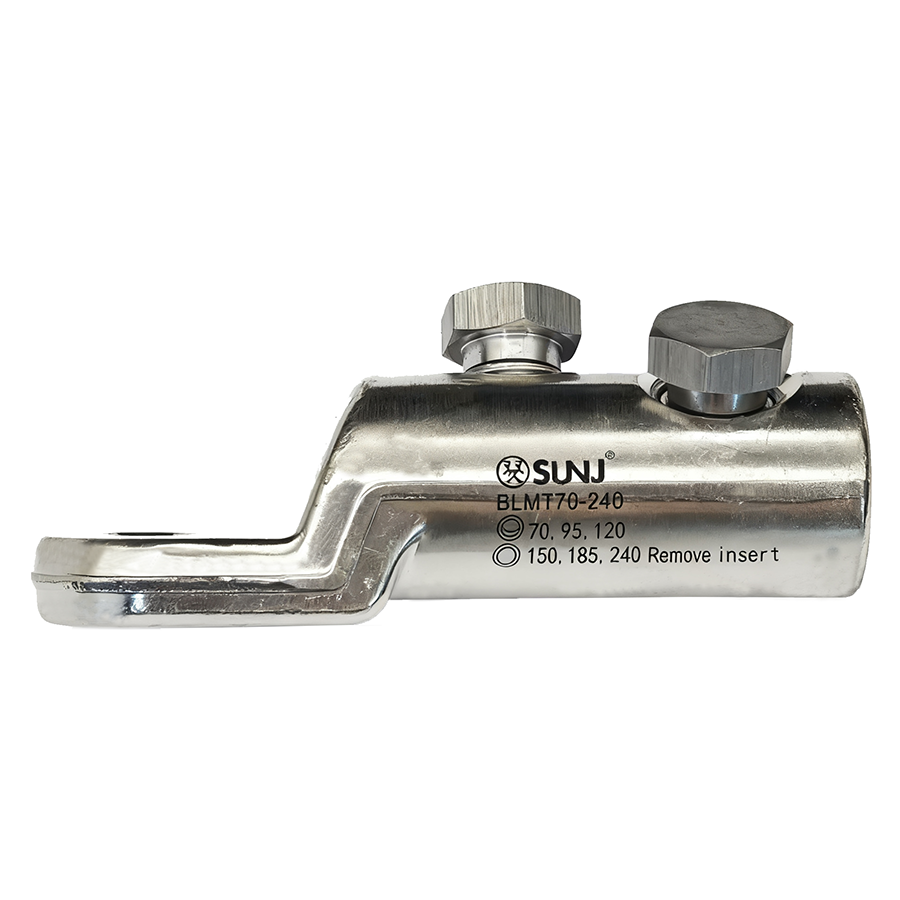

BLMT mechanical lugs

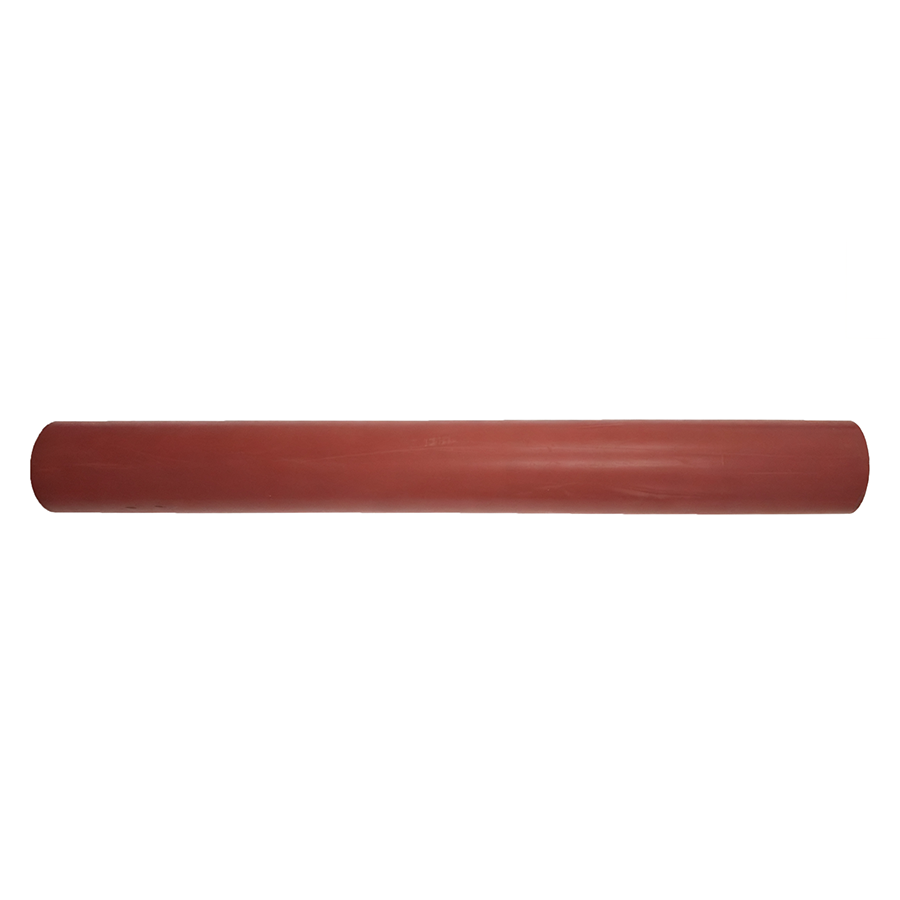

Insulation tube

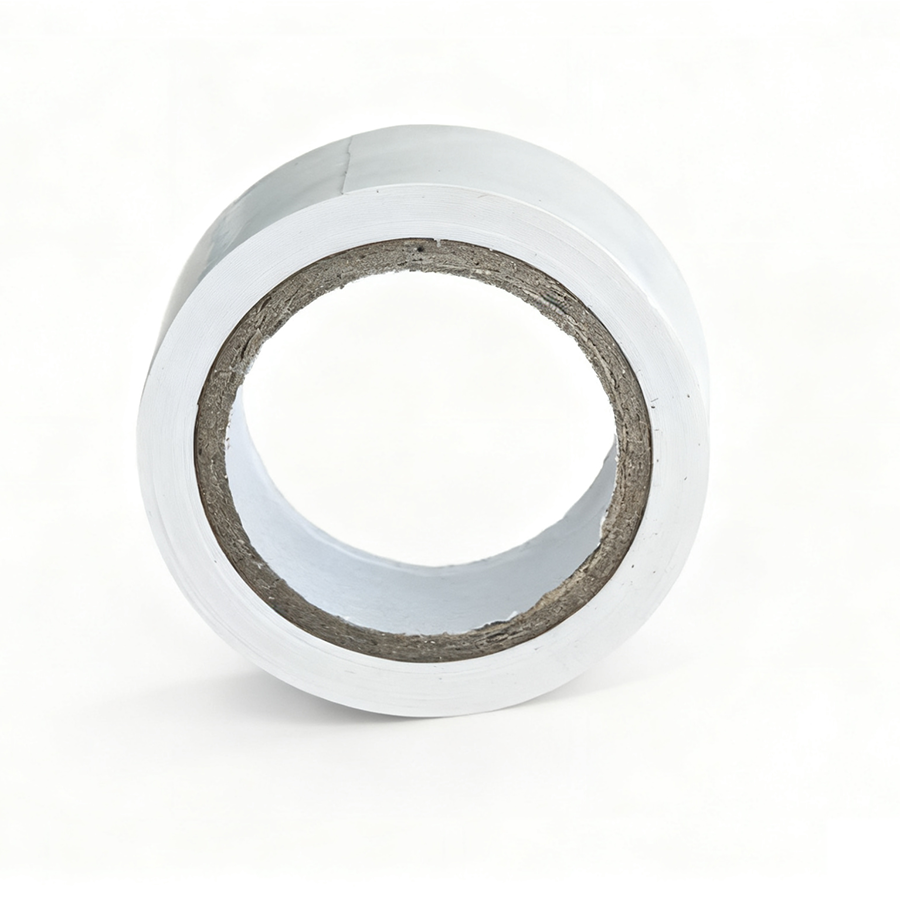

PVC tape

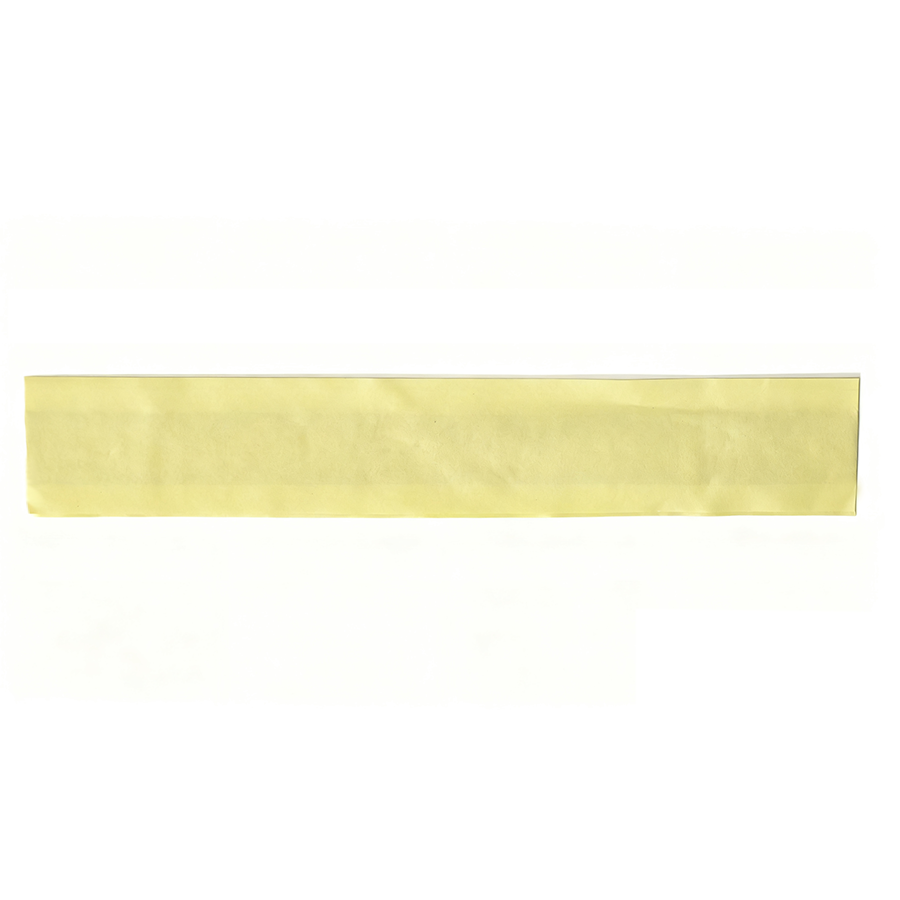

sealing mastic

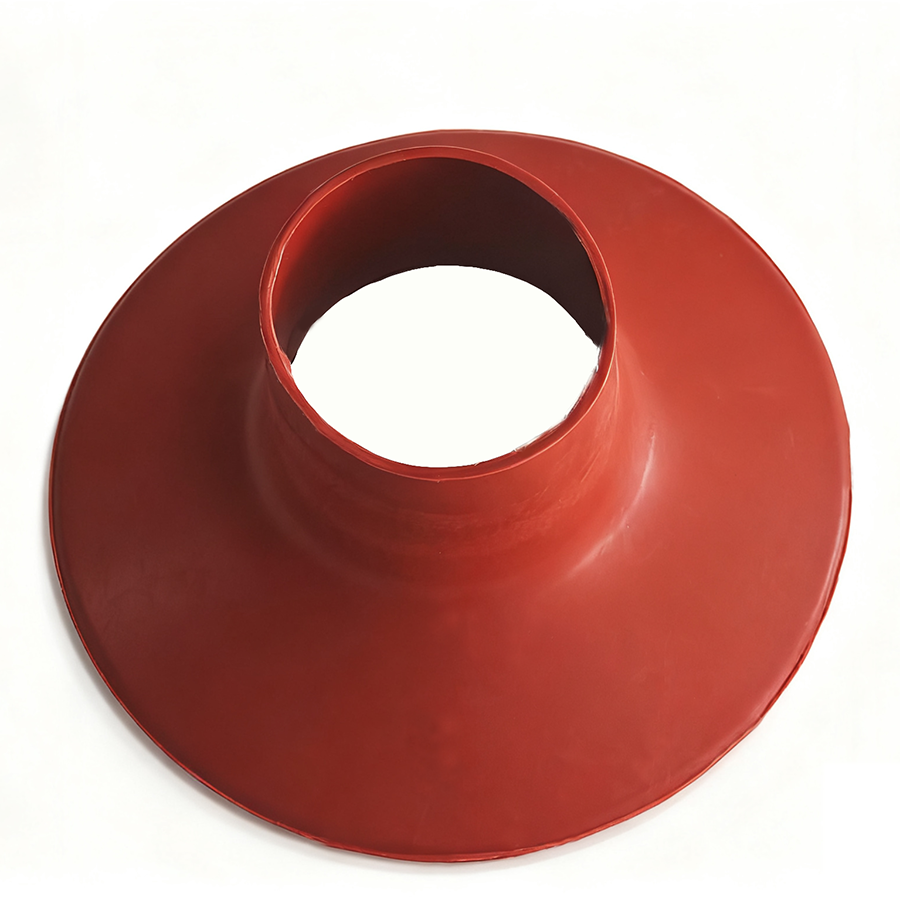

shed

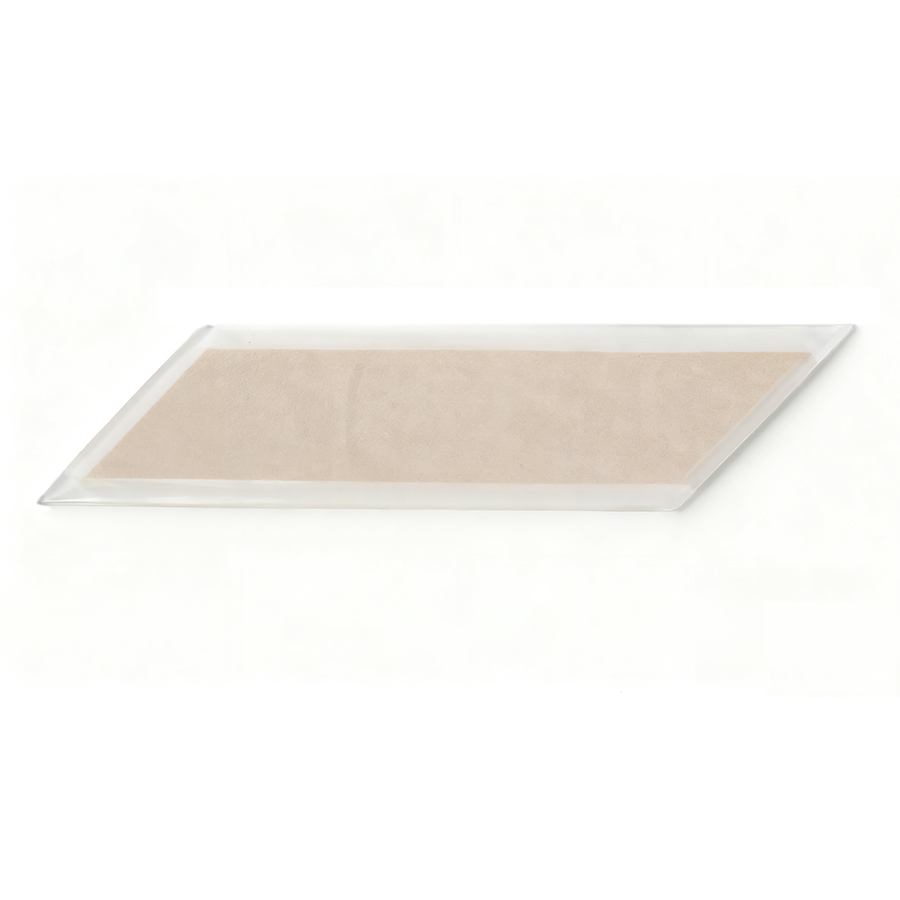

Stress control mastic

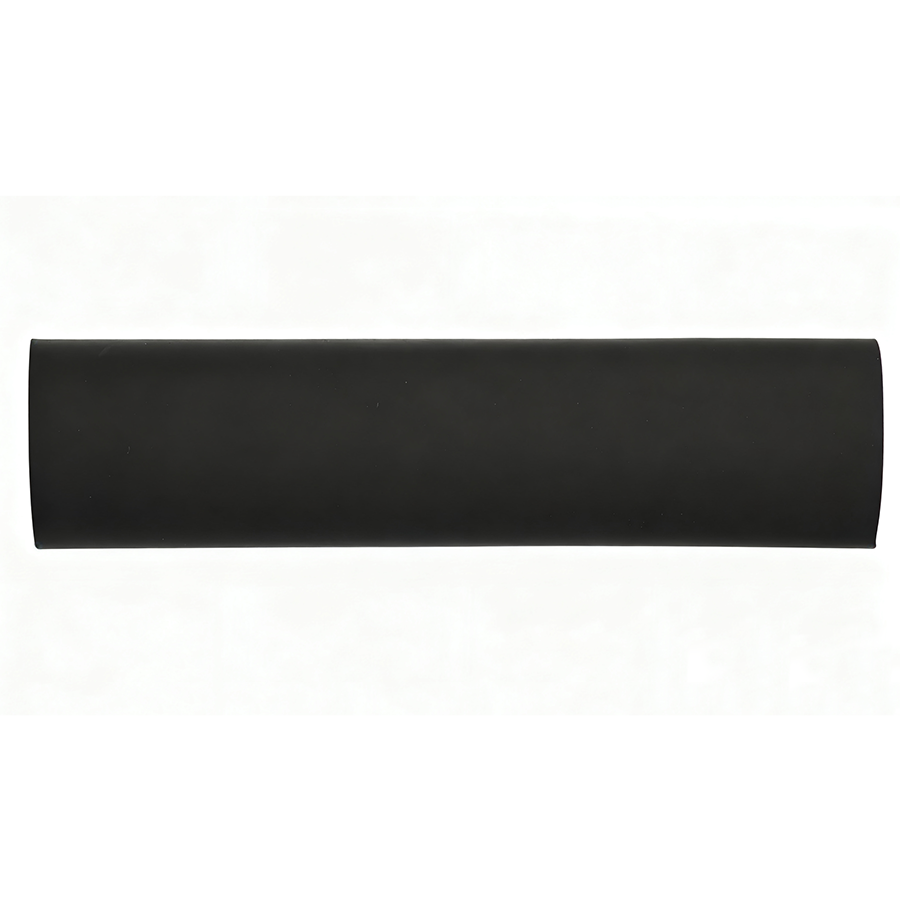

stress control tube
36KV(42KV) Indoor Termination Kit Products Information
Shelf Life & Storage
NEEL Heat Shrink Joint has an extended shelf life when stored in a controlled environment with a temperature range of -10°C to 40°C and relative humidity not exceeding 75%.
Features:
High Mechanical Strength: Designed for robust performance under mechanical stress.
Wide Cross-Section Range: Suitable for all types of connectors, providing versatility in applications.
Compact Dimensions: Optimized for space-saving and efficient installation.
Weathering Stability: Built to withstand environmental exposure, ensuring long-term durability.
Immediate Reenergizing: Allows for quick re-energization after installation.
Compliance with Standards: Successfully passed type testing in accordance with HD 629.1 S3 and IEC 61442.
| Standard | IEC61442 | ||
| Voltage classes | 26/35(40.5kV) | ||
| Partial discharge test at ambient temperature | 45kV,≤10pC | ||
| AC withstand voltage test | 93.5kV,5min | ||
| Impulse voltage withstand | 95℃~100℃,200kV,10 positive and 10 negative impulses | ||
| Product Description | Item | Applicable Cable Range | Certificate Obtained |
| 36KV(42KV)Indoor termination kit | NEEL-NZD-36/1.1 | 35-150mm² | IEC61442 &HD 629.1S3-2019 |
| NEEL-NZD-36/1.2 | 95-240mm² | ||
| NEEL-NZD-36/1.3 | 185-400mm² | ||
| 36KV(42KV)outdoor termination kit | NEEL-WZD-36/1.1 | 35-150mm² | |
| NEEL-WZD-36/1.2 | 95-240mm² | ||
| NEEL-WZD-36/1.3 | 185-400mm² | ||
| 36kv(42KV)Cable joint kit | NEEL-ZJ-36/1.1 | 35-150mm² | |
| NEEL-ZJ-36/1.2 | 95-240mm² | ||
| NEEL-ZJ-36/1.3 | 185-400mm² | ||
