36kv(42KV) Cable Joint Kit
NEEL Heat Shrink Joint has an extended shelf life when stored in a controlled environment with a temperature range of -10°C to 40°C and relative humidity not exceeding 75%.
36kv(42KV) Cable Joint Kit Gallery
Cable intermediate joint

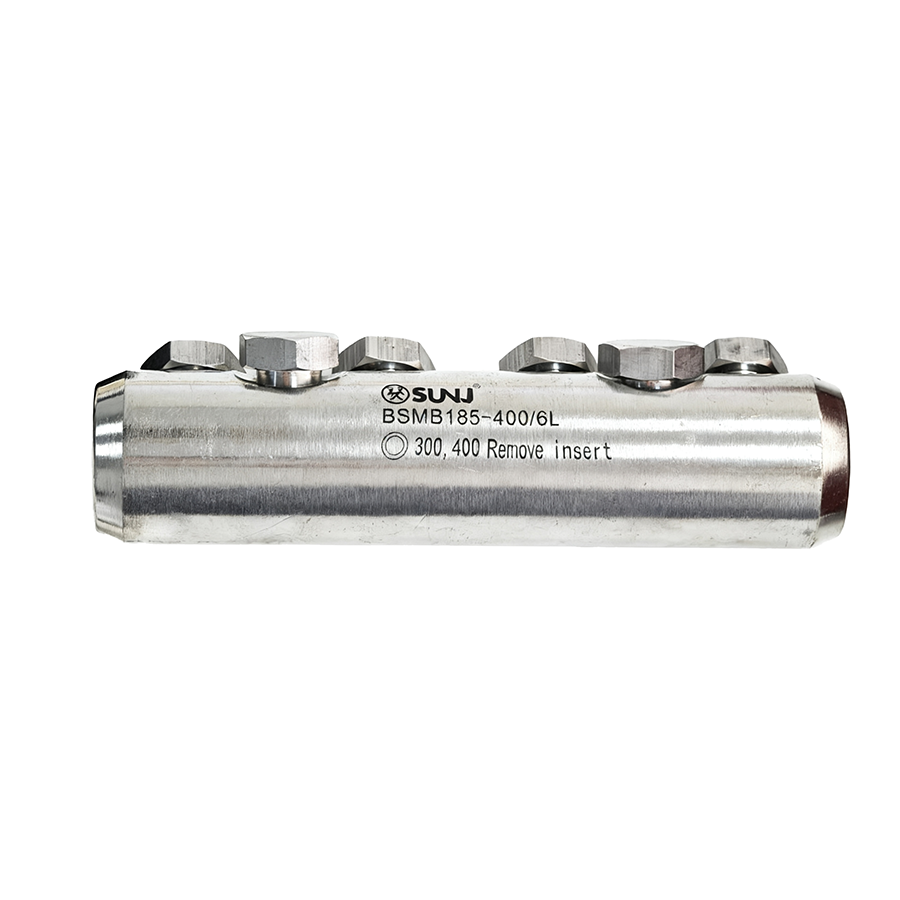

BSMB

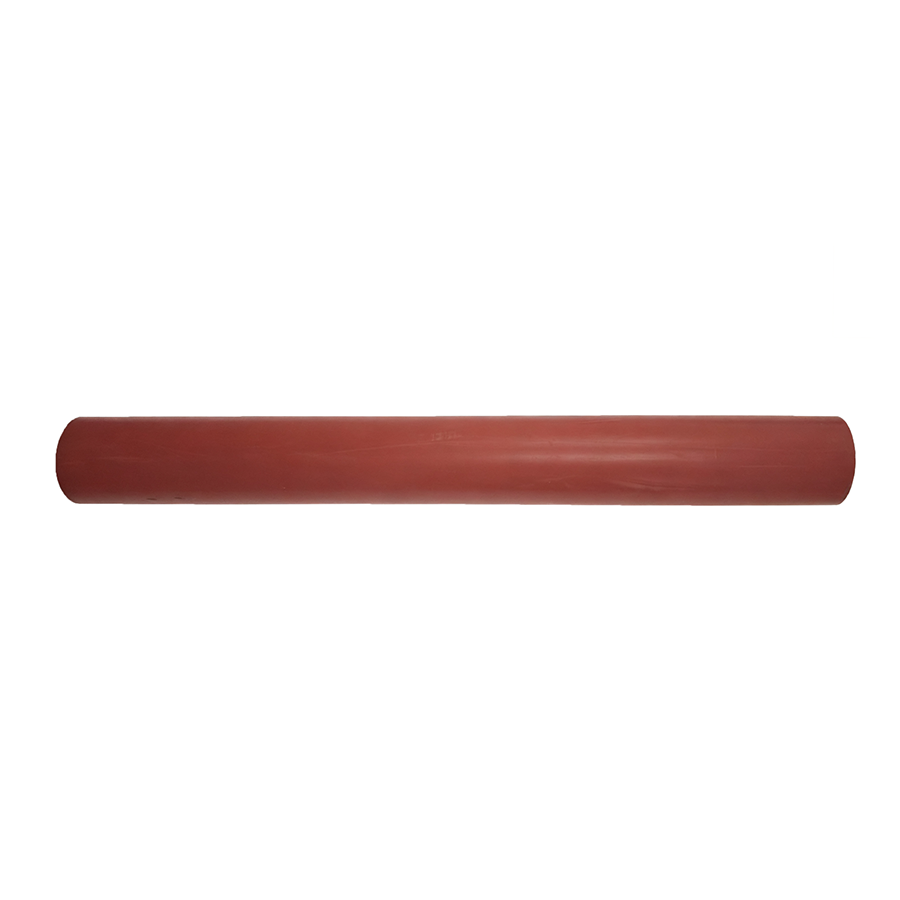

Insulation tube

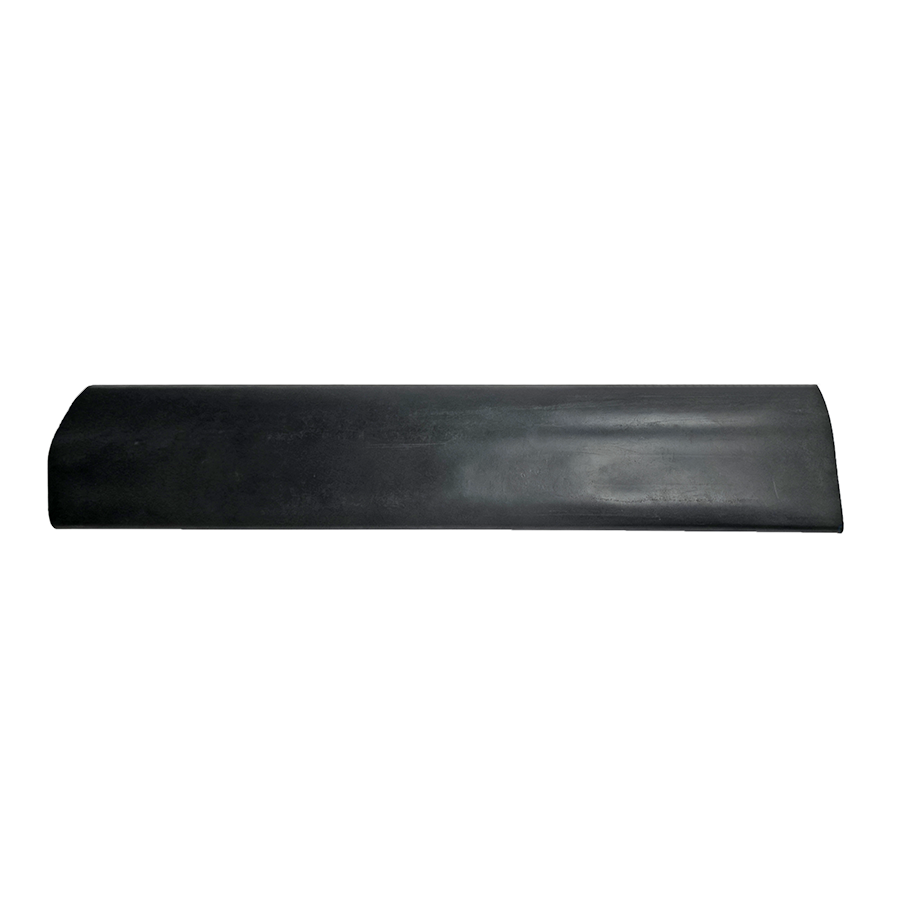

Jacket tube

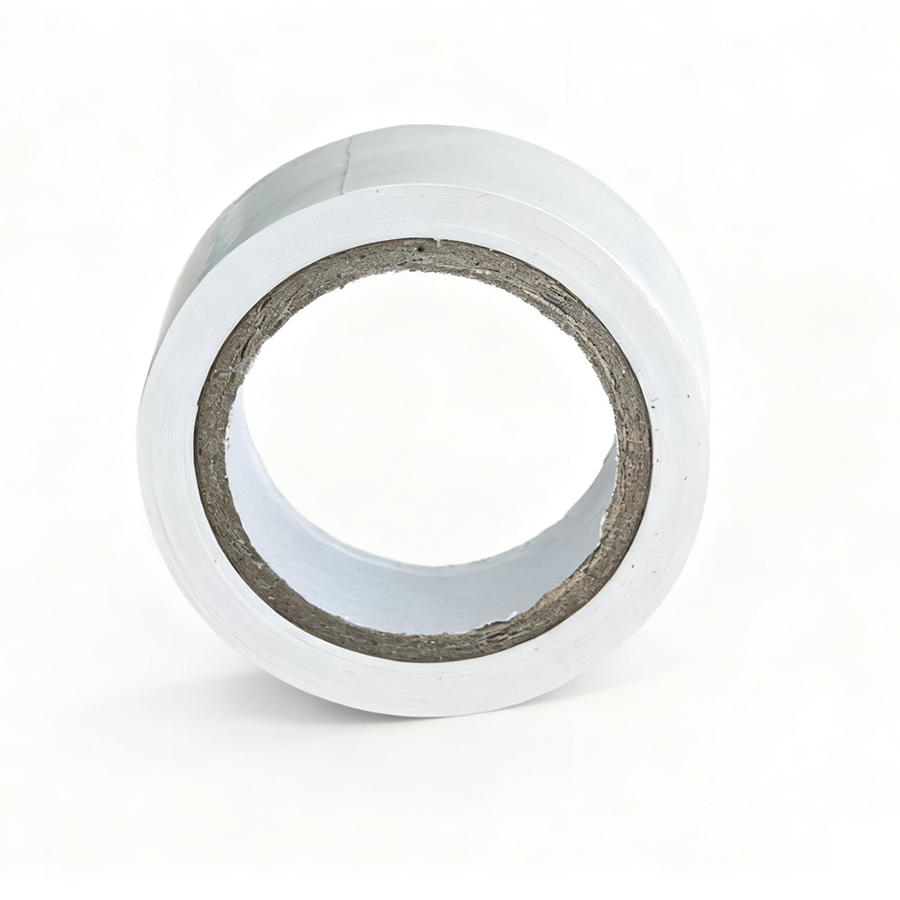

PVC Tape

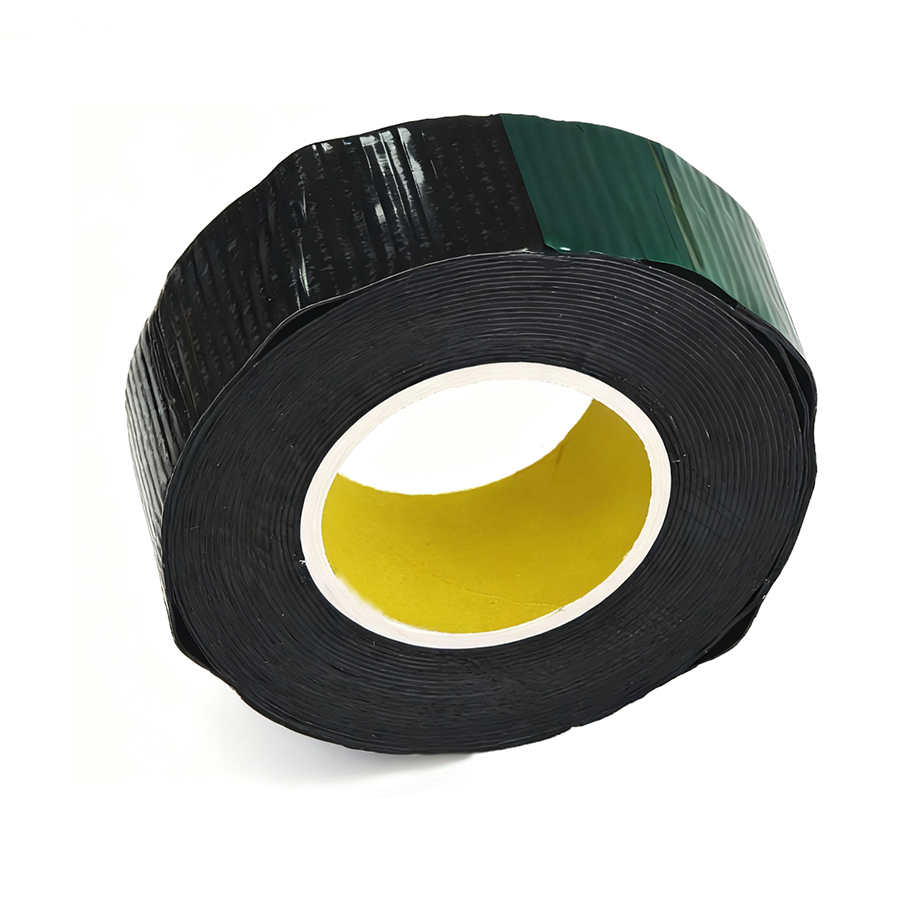

Semi-conductive tape

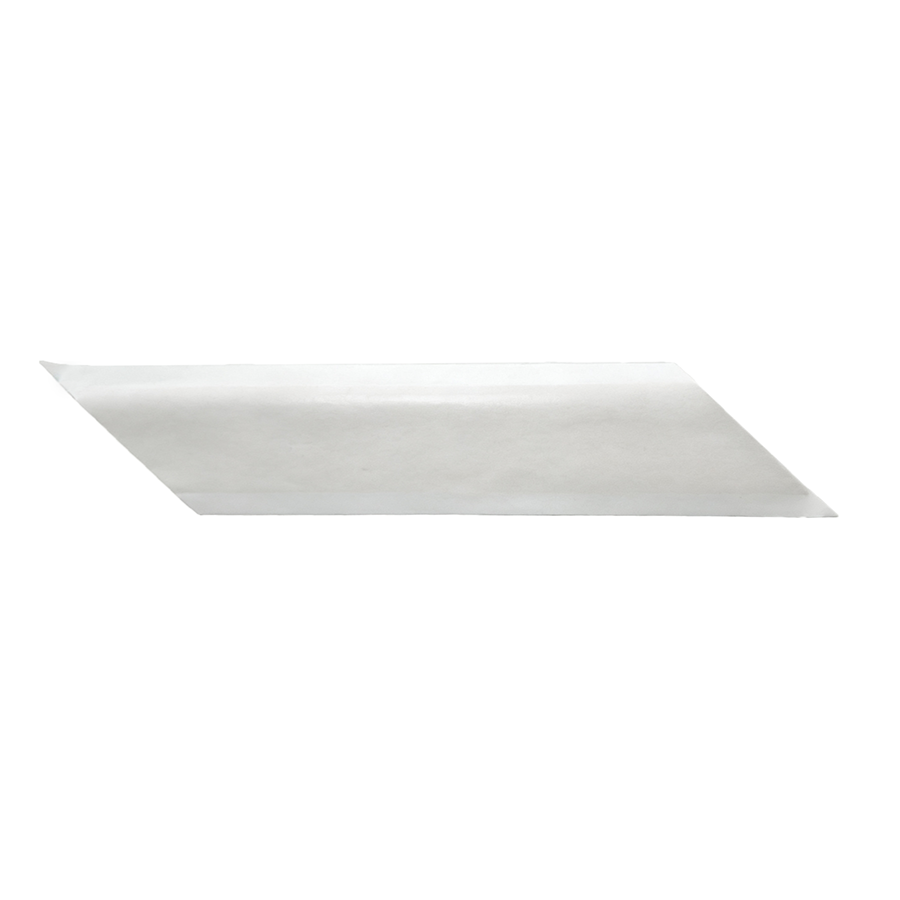

Stress control mastic

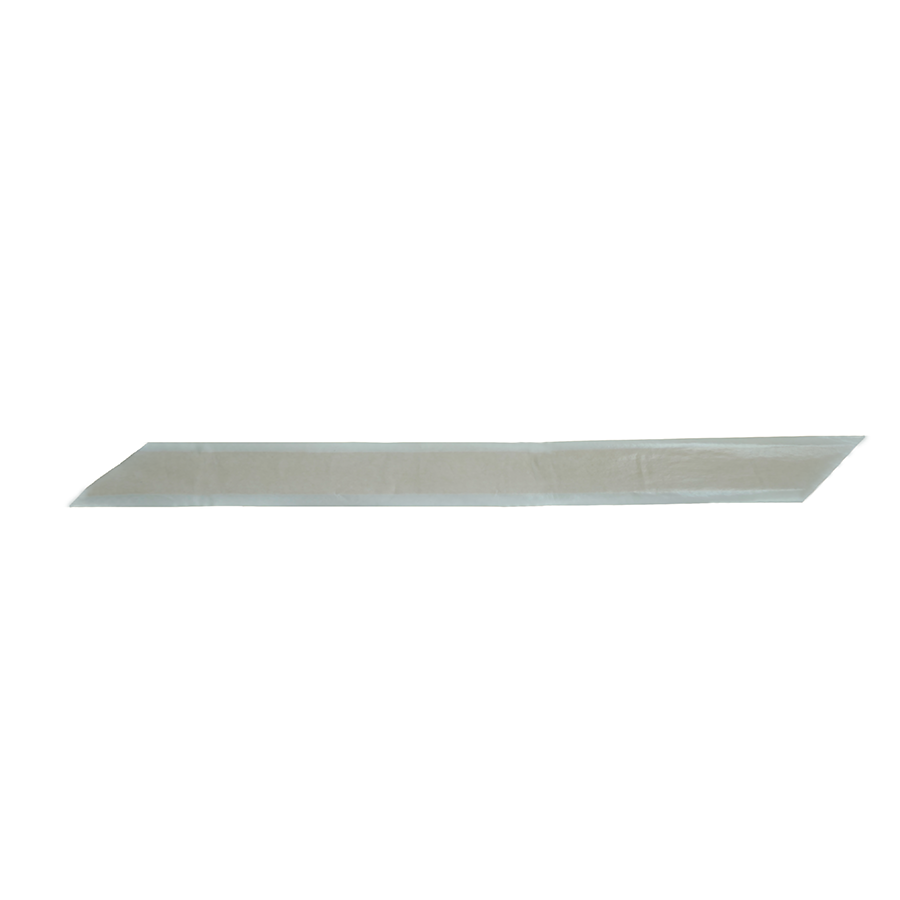

Stress control mastic-2

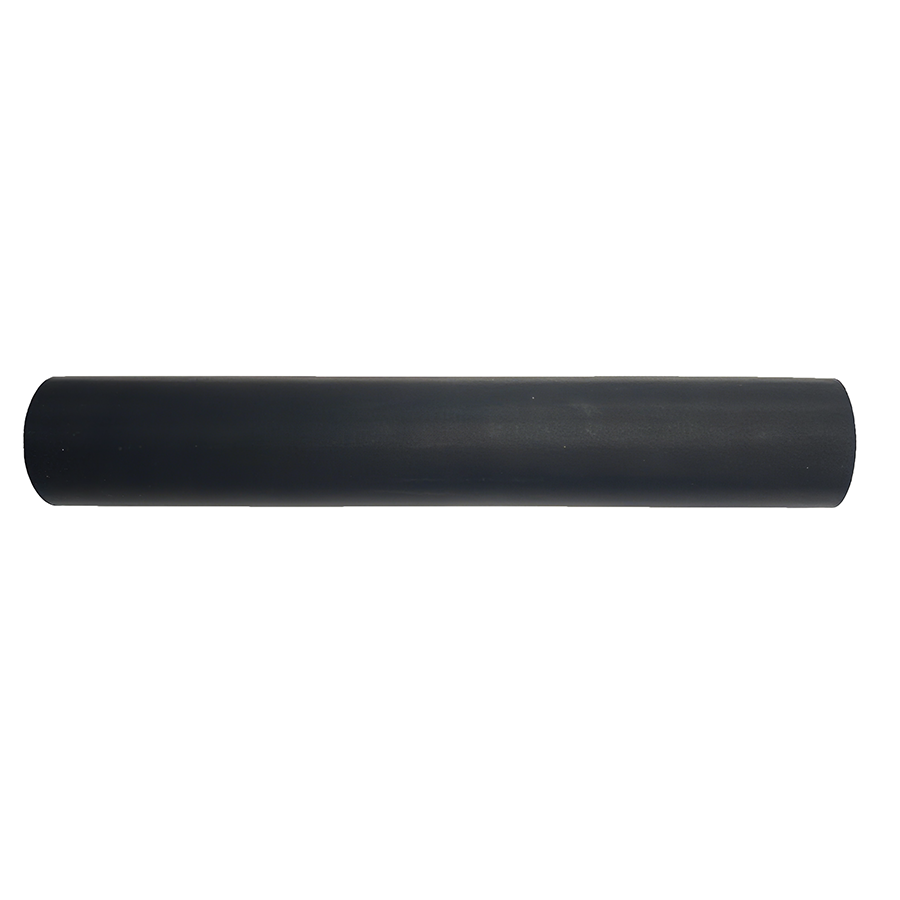

Stress control tube

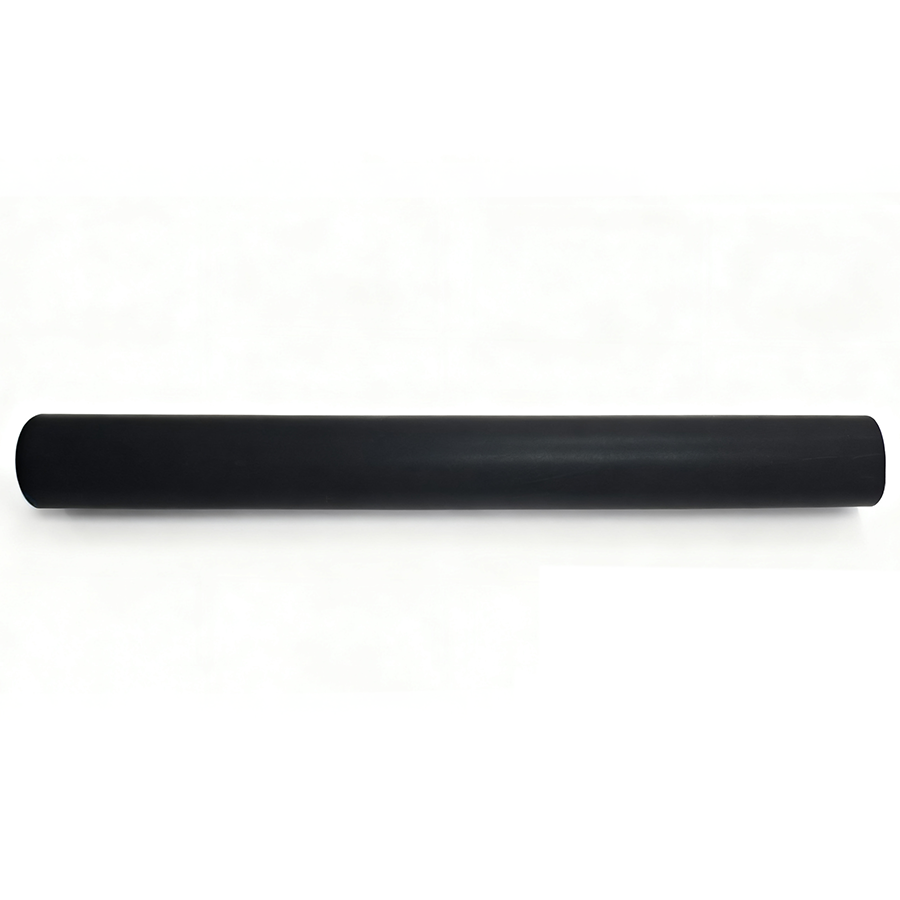

Compound tube

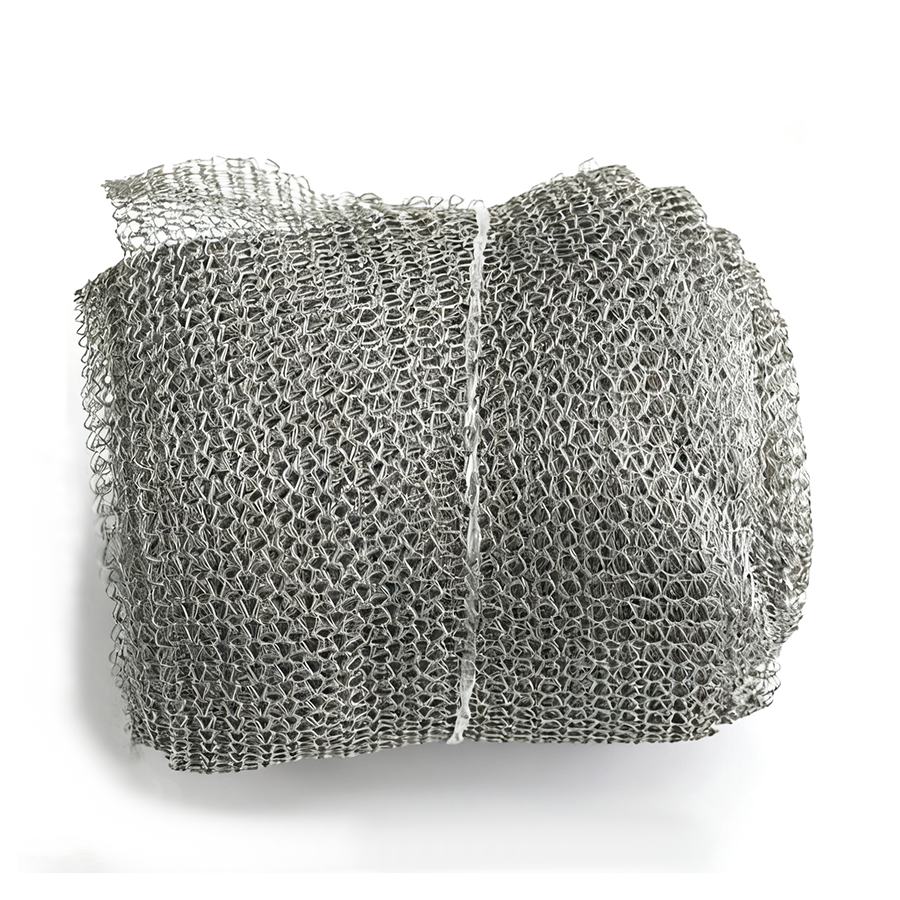

Copper mesh
36kv(42KV) Cable Joint Kit Products Information
Shelf Life & Storage
NEEL Heat Shrink Joint has an extended shelf life when stored in a controlled environment with a temperature range of -10°C to 40°C and relative humidity not exceeding 75%.
Features:
High Mechanical Strength: Designed for robust performance under mechanical stress.
Wide Cross-Section Range: Suitable for all types of connectors, providing versatility in applications.
Compact Dimensions: Optimized for space-saving and efficient installation.
Weathering Stability: Built to withstand environmental exposure, ensuring long-term durability.
Immediate Reenergizing: Allows for quick re-energization after installation.
Compliance with Standards: Successfully passed type testing in accordance with HD 629.1 S3 and IEC 61442.
| Standard | IEC61442 | ||
| Voltage classes | 26/35(40.5kV) | ||
| Partial discharge test at ambient temperature | 45kV,≤10pC | ||
| AC withstand voltage test | 93.5kV,5min | ||
| Impulse voltage withstand | 95℃~100℃,200kV,10 positive and 10 negative impulses | ||
| Product Description | Item | Applicable Cable Range | Certificate Obtained |
| 36KV(42KV)Indoor termination kit | NEEL-NZD-36/1.1 | 35-150mm² | IEC61442 &HD 629.1S3-2019 |
| NEEL-NZD-36/1.2 | 95-240mm² | ||
| NEEL-NZD-36/1.3 | 185-400mm² | ||
| 36KV(42KV)outdoor termination kit | NEEL-WZD-36/1.1 | 35-150mm² | |
| NEEL-WZD-36/1.2 | 95-240mm² | ||
| NEEL-WZD-36/1.3 | 185-400mm² | ||
| 36kv(42KV)Cable joint kit | NEEL-ZJ-36/1.1 | 35-150mm² | |
| NEEL-ZJ-36/1.2 | 95-240mm² | ||
| NEEL-ZJ-36/1.3 | 185-400mm² | ||
Over 18 years direct factory
