ABC Accessories: Complete Guide to Types, Standards, and Applications

Introduction

In modern power distribution, ABC Accessories play a crucial role in ensuring that aerial bundled cables (ABC) operate safely, reliably, and efficiently. While the cables themselves carry the current, it is the accessories — clamps, connectors, lugs, and fittings — that guarantee mechanical strength, electrical safety, and long-term durability.

This comprehensive guide explores the different types of ABC Accessories, the standards they comply with, their applications across industries, and how to select the right fittings for your project.

What Are ABC Accessories?

ABC Accessories are the specialized components used in overhead distribution networks to fix, suspend, terminate, and connect aerial bundled cables. They serve three major purposes:

• Mechanical support: carrying the load of conductors and keeping them stable in outdoor environments.

• Electrical connection: ensuring low-resistance, safe, and reliable current transfer.

• Insulation and protection: maintaining system integrity against water ingress, UV radiation, corrosion, and mechanical fatigue.

Without high-quality accessories, even the best cable can fail prematurely. That is why tested, certified ABC Accessories are essential in every project.

TITLE

Types of ABC Accessories

1. Anchoring Clamps (Dead-End Clamps)

Dead end clamp Manufacturer

Anchoring clamps, also called tension clamps or dead-end fittings, are used at termination points where cables need to be secured under tension.

• Design and Material: Wedge-shaped self-locking bodies made of aluminium alloy or weather-resistant polymer, combined with galvanized or stainless steel hooks.

• Performance: They are designed to handle high tensile loads without damaging the insulation of ABC conductors.

• Standards: Tested according to IEC 61284 and NF C 33-040/041 for tensile strength, UV ageing, vibration endurance, and corrosion resistance.

• Why They Matter: Proper anchoring prevents line sagging and ensures long-term network stability, especially in windy or coastal environments.

• Further Reading: For deeper technical details and installation methods, see our guides on Anchor Clamps and Dead-End Clamps.

2. Suspension Clamps

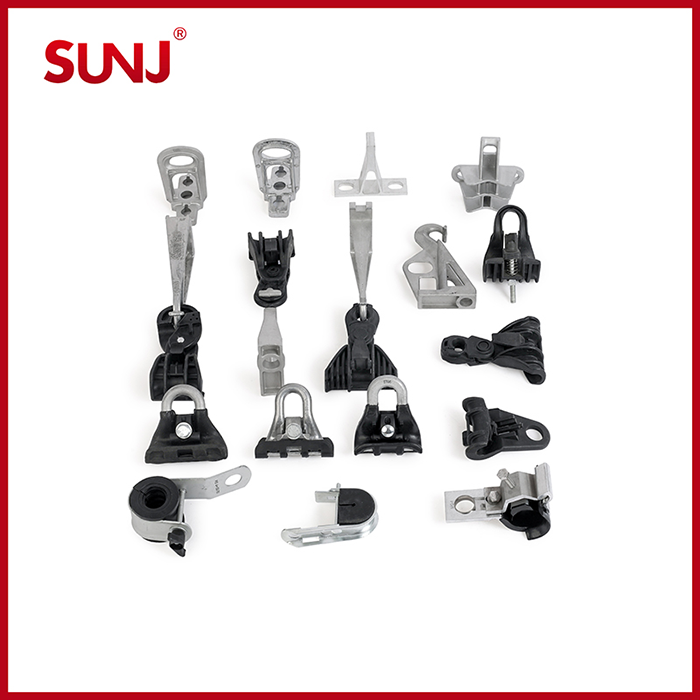

China Suspension Clamp

Suspension clamps, also referred to as hanging clamps or support fittings, hold cables at intermediate poles and allow changes in line direction.

• Function: They support conductors in straight runs or at angles up to 90°, distributing mechanical loads evenly.

• Performance: With a very low abrasion rate (≤0.1%), high resistance to UV and corrosion, and excellent mechanical stability, they ensure that cables do not wear out at suspension points.

• Applications: Ideal for long spans, crossings over rivers or valleys, and areas with frequent wind-induced vibration.

• Learn More: For a detailed technical overview, read our article on Suspension Clamps for Overhead Lines.

3. Service Clamps

Service clamps, sometimes called branch clamps, are used for connecting service lines from the main distribution cable to end users.

• Design: Compact, lightweight, and easy to install without special tools.

• Function: Provide a secure grip and reliable electrical contact while keeping the insulation intact.

• Usage: Common in residential service drops where fast, safe, and cost-effective installation is required.

4. Insulation Piercing Connectors (IPC)

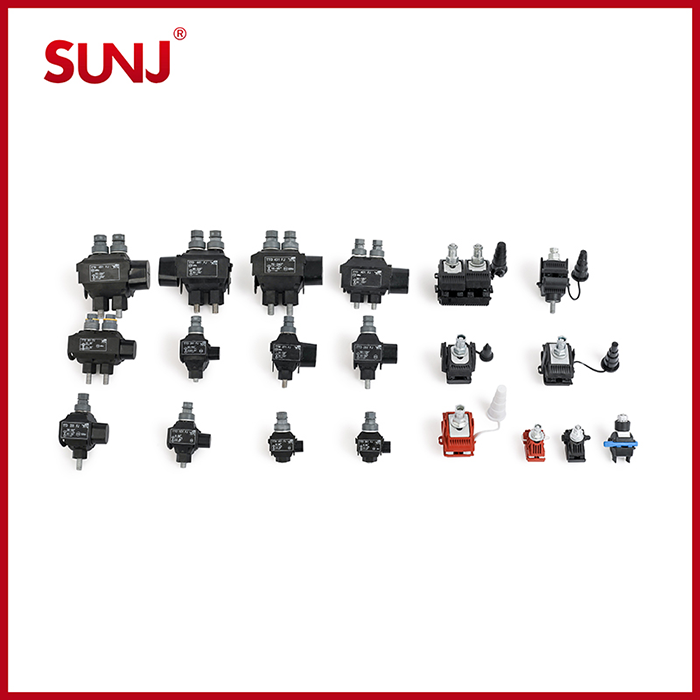

Ipc Insulation Piercing Connector

IPC connectors, also known as piercing connectors or branch connectors, allow branch connections without stripping insulation.

• Performance: Waterproof, tested under 6 kV in water, and designed to maintain low contact resistance over long service life.

• SUNJ JJC Series: Features 100% waterproofing, 10 kV insulation, and a 15+ year service life. Installation takes less than five minutes with a single bolt.

• Compliance: Manufactured to EN 50483-4 and NF C 33-020 standards.

• Extended Reading: For more context on insulation performance and power fittings, you may also read our guide on Pin Insulators.

5. Parallel Groove Clamps

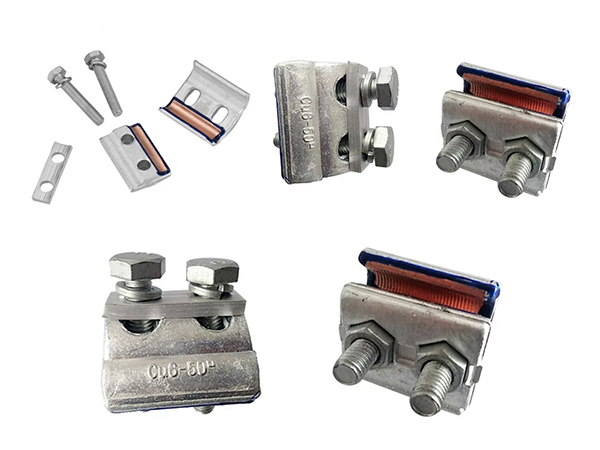

Parallel Groove Clamp a1

Parallel groove clamps, often abbreviated as PG clamps, are essential for connecting parallel conductors.

• Construction: Forged aluminium alloy body, stainless steel fasteners, and pressure plates to distribute force evenly.

• Applications: Used in distribution networks for tapping, grounding, and jumper connections.

• Value: Ensure both strong mechanical retention and reliable current flow under outdoor conditions.

• Further Reading: Learn more in our technical article What Is a Parallel Groove Clamp?.

6. Cable Lugs and Connectors

These accessories are used to terminate cables at busbars, transformers, or switchgear.

• Types: Copper lugs, aluminium lugs, and bimetallic lugs for connecting dissimilar metals.

• Technology: Friction welding between the aluminium barrel and copper palm, with anti-oxidation grease to prevent galvanic corrosion.

• Standards: Conforms to IEC 61238 for low- and medium-voltage connectors.

7. Supporting Brackets and Hooks

Brackets, hooks, and pole hardware are the foundation of overhead line installations.

• Design: Made of galvanized steel or stainless steel for long-term outdoor resistance.

• Purpose: Provide secure anchor points for clamps and accessories on poles, ensuring safe load transfer to the structure.

International Standards and Testing

To guarantee safety and reliability, ABC Accessories must comply with strict international standards such as:

• IEC 61238 – connectors for power conductors

• IEC 61284 – overhead line fittings for mechanical loads

• EN 50483 – European requirements for bundled cable accessories

• NFC 33042 – French standards for ABC systems

Testing protocols include: tensile and slip tests, fatigue cycling, dielectric waterproof tests, and environmental resistance checks such as UV exposure and salt spray.

SUNJ products undergo these tests under ISO 9001 and ISO 14001 certified systems, ensuring consistent quality and full compliance with global utility requirements.

Applications of ABC Accessories

ABC Accessories are used across a wide range of distribution projects, from city centres to remote villages.

• Urban distribution networks: Provide safe, compact installations in areas with dense housing. Accessories like suspension clamps reduce maintenance needs and prevent cable theft.

• Rural electrification: Used extensively in developing regions to expand reliable low-voltage distribution at lower cost. Projects in Africa and South Asia have relied on ABC fittings to reach underserved communities.

• Renewable energy integration: With the rise of solar and wind farms, ABC systems equipped with high-quality connectors and clamps provide efficient links to distribution grids.

• Mixed-use poles: In many regions, power and telecom share the same infrastructure. Proper fittings ensure safe separation and reliable load support.

These applications highlight why utilities and contractors increasingly demand certified, tested accessories. Having been part of projects in more than 80 countries, we have seen first-hand how the right fittings reduce losses, cut installation times, and extend service life.

How to Select the Right ABC Accessories

Selecting accessories for aerial bundled cables is not just a procurement decision — it is an engineering choice that directly affects network reliability. Based on years of project experience, here are the main considerations:

1. Conductor size and type: Match the accessory to the specified cross-section range. Using an undersized clamp can lead to slippage, while oversized fittings may not grip effectively.

2. Mechanical load requirements: Account for span length, wind load, and environmental stress. Dead-end clamps must sustain at least 90% of conductor tensile strength.

3. Environmental conditions: Coastal, desert, or tropical climates demand corrosion-resistant metals and UV-stabilized polymers.

4. Installation method: Accessories with tool-free or single-bolt designs save time and reduce installation errors.

5. Compliance and certification: Choose fittings tested to IEC, EN, or NFC standards to ensure safety and reliability.

6. Supplier reliability: Beyond the product, consider whether the manufacturer offers test reports, international approvals, and after-sales support.

From my perspective, the most successful projects are those where engineers and contractors treat accessories as a critical investment rather than a secondary purchase. This approach has consistently led to longer-lasting installations and fewer failures in the field.

Advantages of High-Quality ABC Accessories

• Longer network lifespan and reduced outages.

• Improved safety and resistance to extreme weather conditions.

• Lower technical losses due to stable, low-resistance connections.

• Faster installation, lower labour costs, and reduced maintenance.

• Assurance of compliance with international standards and utility approvals.

SUNJ’s ABC Accessories

For over 15 years, SUNJ has specialized in manufacturing and supplying high-quality ABC Accessories for power distribution.

• Product portfolio: Anchoring clamps, suspension clamps, IPCs, service clamps, PG clamps, cable lugs, and supporting hardware.

• Technical strength: Advanced friction-welding, UV-resistant polymers, anti-oxidation treatments, and rigorous quality testing.

• Global recognition: Supplying to more than 80 countries, with 32+ utility approvals and over 800 projects delivered.

• Trusted quality: ISO 9001 and ISO 14001 certified, with complete in-house testing facilities.

• Fast service: Overseas warehouses, including Turkey, ensuring faster deliveries and reduced logistics costs.

Conclusion

The performance of an ABC system depends not only on the cable but also on the accessories that support and protect it. High-quality, standards-compliant fittings ensure reliability, safety, and long-term value for utilities and contractors alike.

With proven expertise, international certifications, and a complete product range, SUNJ stands as a trusted partner for ABC Accessories worldwide. For project-specific advice or technical support, our team is ready to assist in making your next installation both reliable and cost-effective.
