Introduction
Aerial cable accessories are essential components in modern electrical and telecommunication networks. They provide the necessary support, connection, and protection for overhead cables, ensuring efficient and safe power distribution. From urban power grids to rural electrification, aerial cable fittings play a key role in maintaining reliable infrastructure. This guide explores the different types of aerial cable accessories, their functions, uses, and installation practices.
1.What Are Aerial Cable Accessories?
1-1 Definition and Role in Electrical Systems
Aerial cable accessories refer to the fittings and equipment used for installing, supporting, connecting, and securing overhead cables. They are designed to withstand environmental stress, mechanical loads, and electrical demands, ensuring uninterrupted power supply and communication.
1-2 Alternative Terms
Aerial cable accessories are also known as:
Overhead Cable Accessories
Overhead Line Accessories
Power Line Accessories
These terms are often used interchangeably across industries.

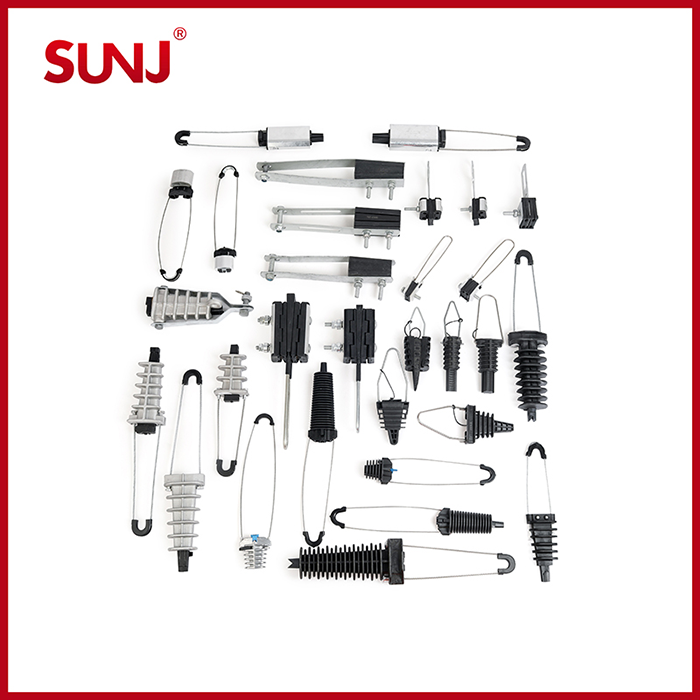

2.Types of Aerial Cable Accessories
2-1 Overview of Main Categories
Aerial cable accessories can be divided into several categories based on their function:
2-2 Aerial Cable Clamps
Suspension Clamps – Support cables on poles without damaging insulation.
Tension/Anchor Clamps – Secure cables under mechanical stress, especially at line ends and angles.
2-3 Suspension & Tension Fittings
Provide stability to aerial bundled cables (ABC).
Designed for heavy-duty mechanical support.
2-4 Connectors & Jointing Kits
Insulation Piercing Connectors (IPC) – Allow safe and reliable tapping without stripping insulation.
Jointing Kits – Used for splicing or extending cables while maintaining insulation integrity.
2-5 ABC Cable Accessories (Aerial Bundled Cable)
Service clamps, anchoring assemblies, and insulated connectors designed specifically for ABC lines.
Offer improved safety and reduced technical losses.
2-6 Comparison of Functions and Applications
| Accessory Type | Main Function | Typical Application |
| Suspension Clamp | Holds cable without damaging insulation | Poles, mid-span support |
| Anchor Clamp | Withstands tension and secures cable ends | Dead-ends, corners |
| Insulation Piercing Connector | Connects conductors without stripping | Service connections |
| Jointing Kit | Extends or repairs cables | Power line extensions |
| ABC Accessories | Safe distribution of bundled cables | Urban & rural electrification |
3.Functions and Uses of Aerial Cable Fittings
3-1 Applications in Power Distribution Networks
Aerial cable fittings are widely used in overhead transmission and distribution lines to support and protect electrical conductors.
3-2 Typical Use Cases
Urban Grids – Compact designs allow installation in congested areas.
Rural Electrification – Cost-effective solution for long-distance power supply.
Industrial Systems – Ensures stable power distribution in factories and plants.
3-3 Efficiency and Reliability
By securing cables and enabling safe connections, aerial cable fittings and connectors reduce outages, enhance reliability, and simplify maintenance.
4.Benefits of Aerial Cable Accessories
| Section | Focus | KeyPoints |
| Enhance Safety and Stability | Safety | Prevent cable slippage, breakage, and electrical faults. |
| Reduce Maintenance Costs | Cost Efficiency | Durable materials and designs minimize wear and tear. |
| Extend Cable Service Life | Longevity | Protection against weathering, UV exposure, and mechanical stress. |
| Ensure Compliance with International Standards | Standards & Quality | Designed to meet IEC, NFC, and BSEN standards, ensuring performance. |
4-1 Enhance Safety and Stability
Prevent cable slippage, breakage, and electrical faults.
4-2 Reduce Maintenance Costs
Durable materials and designs minimize wear and tear.
4-3 Extend Cable Service Life
Protection against weathering, UV exposure, and mechanical stress.
4-4 Ensure Compliance with International Standards
Designed to meet standards such as IEC, NFC, and BSEN, ensuring quality and performance.
5.Installation Basics for Aerial Cable Accessories
5-1 Key Steps in Aerial Cable Installation
Pole preparation and hardware mounting.
Cable stringing and tensioning.
Fixing with appropriate clamps and fittings.
Electrical connections with IPCs or jointing kits.
5-2 Safety Guidelines and Best Practices
Always de-energize lines before installation.
Use insulated tools and protective gear.
Follow manufacturer’s installation instructions.
5-3 Role of Different Overhead Line Fittings
Each fitting ensures correct alignment, load distribution, and long-term cable stability.
6.Comparison with Other Power Line Accessories
6-1 Aerial Cable Accessories vs. Underground Cable Accessories
Aerial Systems – Easier to install, cost-effective, simpler maintenance.
Underground Systems – Higher initial cost, less vulnerable to weather, but difficult to repair.
6-2 Pros and Cons
| Aspect | Aerial Cable Accessories | Underground Cable Accessories |
| Cost | Lower | Higher |
| Reliability | High, but weather-exposed | Very high, protected underground |
| Maintenance | Easy and low-cost | Complex and expensive |
7.FAQs
Q1: What are the most common types of aerial cable accessories?
Suspension clamps, anchor clamps, insulation piercing connectors, jointing kits, and ABC accessories.
Q2: Why are aerial cable fittings important?
They ensure mechanical stability, electrical safety, and efficient distribution.
Q3: Can aerial cable accessories be reused?
Some fittings like suspension clamps can be reused if undamaged, but connectors are usually single-use.
Q4: Are aerial cable accessories weather-resistant?
Yes, most are made from UV-resistant polymers, galvanized steel, or aluminum alloys.
Conclusion
Aerial cable accessories are indispensable in modern power and communication networks. From clamps and connectors to complete ABC systems, these fittings ensure safe, reliable, and cost-effective overhead line installations. By understanding the types, functions, and benefits of aerial cable fittings, utilities and contractors can make informed choices that enhance network performance and longevity.
